Home 1990 Acura Legend LS 2.7L V6 - Gas Cylinder Block

My Garage

1990 Acura Legend

LS 2.7L V6 - Gas

Change Vehicle

Categories

Engine
Engine
Browse Categories

Cylinder Block for 1990 Acura Legend

Cylinder Block for 1990 Acura Legend #0 Cylinder Block for 1990 Acura Legend #1

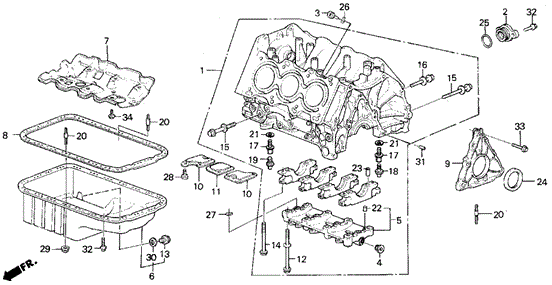

Cylinder Block for 1990 Acura Legend #0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
10
10
11
11
12
12
13
13
14
14
15
15
15
15
16
16
17
17
17
17
18
18
19
19
20
20
20
20
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
32
32
33
33
34
34
No.
Part # / Description / Price
Price
1
11000PL2J00 - Engine: BLOCK ASSY., CYLINDER for Acura Image
Block Assembly, Cylinder
11000-PL2-J00
Acura Acura
View Details
View Details
2
11105PH3000 - Engine: CAP, SEALING (35MM) for Acura Image
Cap, Sealing (35MM)
11105-PH3-000
Acura Acura
View Details
View Details
3
11116PH7000 - Engine: ORIFICE, OIL CONTROL for Acura Image
Orifice, Oil Control
11116-PH7-000
Acura Acura
View Details
View Details
4
11126PK1003 - Engine: BOLT, SEALING (22MM) for Acura Image
Bolt, Sealing (22MM)
11126-PK1-003
Acura Acura
View Details
View Details
5
11130PH7010 - Engine: BRIDGE, BEARING CAP for Acura Image
Bridge, Bearing Cap
11130-PH7-010
Acura Acura
View Details
View Details
6
11200PH7020 - Engine: PAN, OIL for Acura Image
Oil Pan
11200-PH7-020
Acura Acura
View Details
View Details
7
11220PH7010 - Engine: COVER, BEARING CAP for Acura Image
Cover, Bearing Cap
11220-PH7-010
Acura Acura
View Details
View Details
8
11251PH7000 - Engine: GASKET, OIL PAN for Acura Image
Gasket, Oil Pan
11251-PH7-000
Acura Acura
MSRP $95.11 CAD
$67.35 CAD
MSRP $95.11 CAD
$67.35 CAD
9
11301PH7010 - Engine: CASE, OIL SEAL for Acura Image
Case, Oil Seal
11301-PH7-010
Acura Acura
View Details
View Details
10
11711PH7000 - Engine: PLATE A, BREATHER COVER for Acura Image
Plate A, Breather Cover
11711-PH7-000
Acura Acura
View Details
View Details
11
11712PL2000 - Engine: PLATE B, BREATHER COVER for Acura Image
Plate B, Breather Cover
11712-PL2-000
Acura Acura
View Details
View Details
12
90004PL2J01 - Engine: BOLT, FLANGE (11X136.5) for Acura Image
Bolt, Flange (11X136.5)
90004-PL2-J01
Acura Acura
View Details
View Details
13
90009PH1000 - Engine: BOLT, DRAIN PLUG (14MM) for Acura Image
Bolt, Drain Plug (14MM)
90009-PH1-000
Acura Acura
MSRP $9.04 CAD
$6.79 CAD
MSRP $9.04 CAD
$6.79 CAD
14
90009PH7003 - Engine: BOLT, FLANGE (9X86) for Acura Image
Bolt, Flange (9X86)
90009-PH7-003
Acura Acura
View Details
View Details
15
90013PH7003 - Engine: BOLT-WASHER (10X56) for Acura Image
Bolt-Washer (10X56)
90013-PH7-003
Acura Acura
MSRP $11.02 CAD
$8.26 CAD
MSRP $11.02 CAD
$8.26 CAD
16
90014PH7003 - Engine: BOLT-WASHER (10X41) for Acura Image
Bolt-Washer (10X41)
90014-PH7-003
Acura Acura
MSRP $11.15 CAD
$8.36 CAD
MSRP $11.15 CAD
$8.36 CAD
17
90029PH7004 - Engine: BOLT, PLUG (10MM) (SATO RASHI) for Acura Image
Bolt, Plug (10MM) (Sato Rashi)
90029-PH7-004
Acura Acura
MSRP $16.49 CAD
$12.38 CAD
MSRP $16.49 CAD
$12.38 CAD
18
90030PH7000 - Engine: BOLT, BREATHING for Acura Image
Bolt, Breathing
90030-PH7-000
Acura Acura
MSRP $35.91 CAD
$26.94 CAD
MSRP $35.91 CAD
$26.94 CAD
19
90040PH7000 - Engine: BOLT, BREATHING for Acura Image
Bolt, Breathing
90040-PH7-000
Acura Acura
MSRP $22.70 CAD
$17.00 CAD
MSRP $22.70 CAD
$17.00 CAD
20
90041PA5000 - Engine: BOLT, STUD (6X28) for Acura Image
Bolt, Stud (6X28)
90041-PA5-000
Acura Acura
MSRP $4.57 CAD
$3.40 CAD
MSRP $4.57 CAD
$3.40 CAD
21
90481463000 - Engine: WASHER (10.2MM) for Acura Image
Washer (10.2MM)
90481-463-000
Acura Acura
MSRP $3.31 CAD
$2.48 CAD
MSRP $3.31 CAD
$2.48 CAD
22
9430108100 - Engine: PIN, DOWEL (8X10) for Acura Image
Pin, Dowel (8X10)
94301-08100
Acura Acura
MSRP $3.30 CAD
$2.48 CAD
MSRP $3.30 CAD
$2.48 CAD
23
90715PH7000 - Engine: PIN, DOWEL (13X37) for Acura Image
Pin, Dowel (13X37)
90715-PH7-000
Acura Acura
View Details
View Details
24
91214RNBA01 - Engine: OIL SEAL (80X98X10) (ARAI) for Acura Image
Oil Seal (80X98X10) (Arai)
91214-RNB-A01
Acura Acura
MSRP $29.14 CAD
$21.88 CAD
MSRP $29.14 CAD
$21.88 CAD
24
91214PL2003 - Engine: OIL SEAL (98X80X10) (NOK) for Acura Image
Oil Seal (98X80X10) (Nok)
91214-PL2-003
Acura Acura
MSRP $88.67 CAD
$62.80 CAD
MSRP $88.67 CAD
$62.80 CAD
25
91301PR7A00 - Engine: O-RING (28.7X3.5) for Acura Image
O-Ring (28.7X3.5)
91301-PR7-A00
Acura Acura
MSRP $11.35 CAD
$8.51 CAD
MSRP $11.35 CAD
$8.51 CAD
26
91305PH7003 - Engine: O-RING (12.5X2.4) for Acura Image
O-Ring (12.5X2.4)
91305-PH7-003
Acura Acura
MSRP $5.25 CAD
$3.96 CAD
MSRP $5.25 CAD
$3.96 CAD
27
91323PH7003 - Engine: GASKET, BEARING CAP BRIDGE (ARAI) for Acura Image
Gasket, Bearing Cap Bridge (Arai)
91323-PH7-003
Acura Acura
MSRP $5.21 CAD
$3.93 CAD
MSRP $5.21 CAD
$3.93 CAD
28
92101060120H - Engine: BOLT, HEX. (6X12) for Acura Image
Bolt, Hex (6X12)
92101-06012-0H
Acura Acura
MSRP $1.42 CAD
$1.06 CAD
MSRP $1.42 CAD
$1.06 CAD
29
9405006080 - Engine: NUT, FLANGE (6MM) for Acura Image
Nut, Flange (6MM)
94050-06080
Acura Acura
MSRP $0.95 CAD
$0.71 CAD
MSRP $0.95 CAD
$0.71 CAD
30
9410914000 - Engine: WASHER, DRAIN PLUG (14MM) for Acura Image
Washer, Drain Plug (14MM)
94109-14000
Acura Acura
MSRP $0.65 CAD
$0.50 CAD
MSRP $0.65 CAD
$0.50 CAD
31
9430106100 - Engine: PIN, DOWEL (6X10) for Acura Image
Pin, Dowel (6X10)
94301-06100
Acura Acura
MSRP $3.30 CAD
$2.48 CAD
MSRP $3.30 CAD
$2.48 CAD
32
957010601808 - Engine: BOLT, FLANGE (6X18) for Acura Image
Bolt, Flange (6X18)
95701-06018-08
Acura Acura
MSRP $1.82 CAD
$1.36 CAD
MSRP $1.82 CAD
$1.36 CAD
33
90052PH7000 - Engine: BOLT, FLANGE (6X22) for Acura Image
Bolt, Flange (6X22)
90052-PH7-000
Acura Acura
MSRP $9.13 CAD
$6.85 CAD
MSRP $9.13 CAD
$6.85 CAD
34
957010601208 - Engine: BOLT, FLANGE (6X12) for Acura Image
Bolt, Flange (6X12)
95701-06012-08
Acura Acura
MSRP $1.79 CAD
$1.35 CAD
MSRP $1.79 CAD
$1.35 CAD

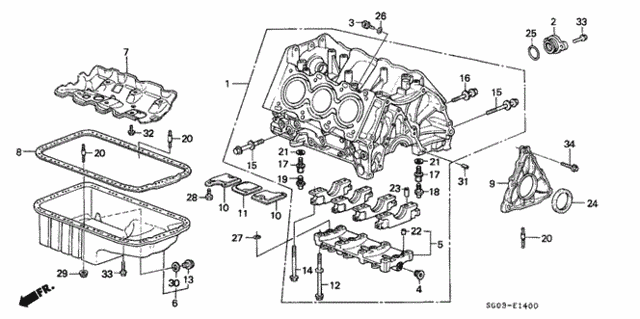

Cylinder Block for 1990 Acura Legend #1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
10
10
11
11
12
12
13
13
14
14
15
15
15
15
16
16
17
17
17
17
18
18
19
19
20
20
20
20
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
33
33
34
34
No.
Part # / Description / Price
Price
1
11000PL2J00 - Engine: BLOCK ASSY., CYLINDER for Acura Image
Block Assembly, Cylinder
11000-PL2-J00
Acura Acura
View Details
View Details
2
11105PH3000 - Engine: CAP, SEALING (35MM) for Acura Image
Cap, Sealing (35MM)
11105-PH3-000
Acura Acura
View Details
View Details
3
11116PH7000 - Engine: ORIFICE, OIL CONTROL for Acura Image
Orifice, Oil Control
11116-PH7-000
Acura Acura
View Details
View Details
4
11126PK1003 - Engine: BOLT, SEALING (22MM) for Acura Image
Bolt, Sealing (22MM)
11126-PK1-003
Acura Acura
View Details
View Details
5
11130PH7010 - Engine: BRIDGE, BEARING CAP for Acura Image
Bridge, Bearing Cap
11130-PH7-010
Acura Acura
View Details
View Details
6
11200PH7020 - Engine: PAN, OIL for Acura Image
Oil Pan
11200-PH7-020
Acura Acura
View Details
View Details
7
11220PH7010 - Engine: COVER, BEARING CAP for Acura Image
Cover, Bearing Cap
11220-PH7-010
Acura Acura
View Details
View Details
8
11251PH7000 - Engine: GASKET, OIL PAN for Acura Image
Gasket, Oil Pan
11251-PH7-000
Acura Acura
MSRP $95.11 CAD
$67.35 CAD
MSRP $95.11 CAD
$67.35 CAD
9
11301PH7010 - Engine: CASE, OIL SEAL for Acura Image
Case, Oil Seal
11301-PH7-010
Acura Acura
View Details
View Details
10
11711PH7000 - Engine: PLATE A, BREATHER COVER for Acura Image
Plate A, Breather Cover
11711-PH7-000
Acura Acura
View Details
View Details
11
11712PL2000 - Engine: PLATE B, BREATHER COVER for Acura Image
Plate B, Breather Cover
11712-PL2-000
Acura Acura
View Details
View Details
12
90004PL2J01 - Engine: BOLT, FLANGE (11X136.5) for Acura Image
Bolt, Flange (11X136.5)
90004-PL2-J01
Acura Acura
View Details
View Details
13
90009PH1000 - Engine: BOLT, DRAIN PLUG (14MM) for Acura Image
Bolt, Drain Plug (14MM)
90009-PH1-000
Acura Acura
MSRP $9.04 CAD
$6.79 CAD
MSRP $9.04 CAD
$6.79 CAD
14
90009PH7003 - Engine: BOLT, FLANGE (9X86) for Acura Image
Bolt, Flange (9X86)
90009-PH7-003
Acura Acura
View Details
View Details
15
90013PH7003 - Engine: BOLT-WASHER (10X56) for Acura Image
Bolt-Washer (10X56)
90013-PH7-003
Acura Acura
MSRP $11.02 CAD
$8.26 CAD
MSRP $11.02 CAD
$8.26 CAD
16
90014PH7003 - Engine: BOLT-WASHER (10X41) for Acura Image
Bolt-Washer (10X41)
90014-PH7-003
Acura Acura
MSRP $11.15 CAD
$8.36 CAD
MSRP $11.15 CAD
$8.36 CAD
17
90029PH7004 - Engine: BOLT, PLUG (10MM) (SATO RASHI) for Acura Image
Bolt, Plug (10MM) (Sato Rashi)
90029-PH7-004
Acura Acura
MSRP $16.49 CAD
$12.38 CAD
MSRP $16.49 CAD
$12.38 CAD
18
90030PH7000 - Engine: BOLT, BREATHING for Acura Image
Bolt, Breathing
90030-PH7-000
Acura Acura
MSRP $35.91 CAD
$26.94 CAD
MSRP $35.91 CAD
$26.94 CAD
19
90040PH7000 - Engine: BOLT, BREATHING for Acura Image
Bolt, Breathing
90040-PH7-000
Acura Acura
MSRP $22.70 CAD
$17.00 CAD
MSRP $22.70 CAD
$17.00 CAD
20
90041PA5000 - Engine: BOLT, STUD (6X28) for Acura Image
Bolt, Stud (6X28)
90041-PA5-000
Acura Acura
MSRP $4.57 CAD
$3.40 CAD
MSRP $4.57 CAD
$3.40 CAD
21
90481463000 - Engine: WASHER (10.2MM) for Acura Image
Washer (10.2MM)
90481-463-000
Acura Acura
MSRP $3.31 CAD
$2.48 CAD
MSRP $3.31 CAD
$2.48 CAD
22
9430108100 - Engine: PIN, DOWEL (8X10) for Acura Image
Pin, Dowel (8X10)
94301-08100
Acura Acura
MSRP $3.30 CAD
$2.48 CAD
MSRP $3.30 CAD
$2.48 CAD
23
90715PH7000 - Engine: PIN, DOWEL (13X37) for Acura Image
Pin, Dowel (13X37)
90715-PH7-000
Acura Acura
View Details
View Details
24
91214PL2003 - Engine: OIL SEAL (98X80X10) (NOK) for Acura Image
Oil Seal (98X80X10) (Nok)
91214-PL2-003
Acura Acura
MSRP $88.67 CAD
$62.80 CAD
MSRP $88.67 CAD
$62.80 CAD
24
91214RNBA01 - Engine: OIL SEAL (80X98X10) (ARAI) for Acura Image
Oil Seal (80X98X10) (Arai)
91214-RNB-A01
Acura Acura
MSRP $29.14 CAD
$21.88 CAD
MSRP $29.14 CAD
$21.88 CAD
25
91301PR7A00 - Engine: O-RING (28.7X3.5) for Acura Image
O-Ring (28.7X3.5)
91301-PR7-A00
Acura Acura
MSRP $11.35 CAD
$8.51 CAD
MSRP $11.35 CAD
$8.51 CAD
26
91305PH7003 - Engine: O-RING (12.5X2.4) for Acura Image
O-Ring (12.5X2.4)
91305-PH7-003
Acura Acura
MSRP $5.25 CAD
$3.96 CAD
MSRP $5.25 CAD
$3.96 CAD
27
91323PH7003 - Engine: GASKET, BEARING CAP BRIDGE (ARAI) for Acura Image
Gasket, Bearing Cap Bridge (Arai)
91323-PH7-003
Acura Acura
MSRP $5.21 CAD
$3.93 CAD
MSRP $5.21 CAD
$3.93 CAD
28
92101060120H - Engine: BOLT, HEX. (6X12) for Acura Image
Bolt, Hex (6X12)
92101-06012-0H
Acura Acura
MSRP $1.42 CAD
$1.06 CAD
MSRP $1.42 CAD
$1.06 CAD
29
9405006080 - Engine: NUT, FLANGE (6MM) for Acura Image
Nut, Flange (6MM)
94050-06080
Acura Acura
MSRP $0.95 CAD
$0.71 CAD
MSRP $0.95 CAD
$0.71 CAD
30
9410914000 - Engine: WASHER, DRAIN PLUG (14MM) for Acura Image
Washer, Drain Plug (14MM)
94109-14000
Acura Acura
MSRP $0.65 CAD
$0.50 CAD
MSRP $0.65 CAD
$0.50 CAD
31
9430106100 - Engine: PIN, DOWEL (6X10) for Acura Image
Pin, Dowel (6X10)
94301-06100
Acura Acura
MSRP $3.30 CAD
$2.48 CAD
MSRP $3.30 CAD
$2.48 CAD
32
957010601208 - Engine: BOLT, FLANGE (6X12) for Acura Image
Bolt, Flange (6X12)
95701-06012-08
Acura Acura
MSRP $1.79 CAD
$1.35 CAD
MSRP $1.79 CAD
$1.35 CAD
33
957010601808 - Engine: BOLT, FLANGE (6X18) for Acura Image
Bolt, Flange (6X18)
95701-06018-08
Acura Acura
MSRP $1.82 CAD
$1.36 CAD
MSRP $1.82 CAD
$1.36 CAD
34
90052PH7000 - Engine: BOLT, FLANGE (6X22) for Acura Image
Bolt, Flange (6X22)
90052-PH7-000
Acura Acura
MSRP $9.13 CAD
$6.85 CAD
MSRP $9.13 CAD
$6.85 CAD
