Home 1990 Acura Legend LS 2.7L V6 - Gas A/C Compressor

My Garage

1990 Acura Legend

LS 2.7L V6 - Gas

Change Vehicle

Categories

Body/Air Conditioning
Body/Air Conditioning
Browse Categories

A/C Compressor for 1990 Acura Legend

A/C Compressor for 1990 Acura Legend #0 A/C Compressor for 1990 Acura Legend #1

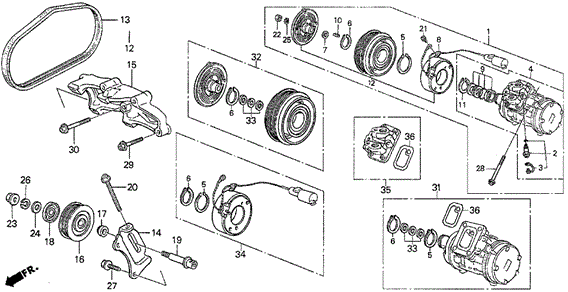

A/C Compressor for 1990 Acura Legend #0
1
1
2
2
3
3
4
4
5
5
5
5
5
5
6
6
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
25
25
27
27
28
28
29
29
30
30
34
34
35
35
36
36
36
36
No.
Part # / Description / Price
Price
NI
6388PH7505RM - Body/Air Conditioning: COMPRESSOR, A/C (RMD)(DENSO) (INCLUDES CLUTCH & COIL) for Acura Image
Compressor, A/C (RMD)(Denso) (Includes Clutch & Coil)
6388PH7505RM
Acura Acura
View Details
View Details
NI
38020SM4A1AH - Body/Air Conditioning: RETROFIT KIT (A1) (R134) for Acura Image
Retrofit Kit (A1) (R134)
38020-SM4-A1AH
Acura Acura
View Details
View Details
1
38800PH7661 - Body/Air Conditioning: COMPRESSOR ASSY. (DENSO) for Acura Image
Compressor Assembly (Denso)
38800PH7661
Acura Acura
View Details
View Details
2
38801PT3A01 - Body/Air Conditioning: VALVE SUB-ASSY., SAFETY for Acura Image
Valve Sub-Assembly, Safety
38801-PT3-A01
Acura Acura
View Details
View Details
3
38802PT3A00 - Body/Air Conditioning: SEAL, RELIEF VALVE for Acura Image
Seal, Relief Valve
38802-PT3-A00
Acura Acura
View Details
View Details
4
38810PH7013 - Body/Air Conditioning: COMPRESSOR for Acura Image
Compressor
38810-PH7-013
Acura Acura
View Details
View Details
5
38811671003 - Body/Air Conditioning: CIRCLIP A (OUTER) for Acura Image
Circlip A (Outer)
38811-671-003
Acura Acura
View Details
View Details
6
38812671003 - Body/Air Conditioning: RING A, SNAP for Acura Image
Ring A, Snap
38812-671-003
Acura Acura
MSRP $13.37 CAD
$10.03 CAD
MSRP $13.37 CAD
$10.03 CAD
7
38912671N01 - Body/Air Conditioning: WASHER A, PLATE for Acura Image
Washer Set, Plate
38912-671-N01
Acura Acura
View Details
View Details
7
N9490132610 - Body/Air Conditioning: WASHER B, PLATE for Acura Image
Washer A Plate
N949013-2610
Acura Acura
View Details
View Details
7
38815671003 - Body/Air Conditioning: WASHER C, PLATE for Acura Image
Washer C, Plate
38815-671-003
Acura Acura
View Details
View Details
8
38816PH1003 - Body/Air Conditioning: CLIP, LEAD WIRE for Acura Image
Clip, Lead Wire
38816-PH1-003
Acura Acura
MSRP $6.50 CAD
$4.86 CAD
View Details
MSRP $6.50 CAD
$4.86 CAD
View Details
9
38834PD2003 - Body/Air Conditioning: SEAL ASSY., SHAFT for Acura Image
Seal Assembly, Shaft
38834-PD2-003
Acura Acura
View Details
View Details
10
38836PD2003 - Body/Air Conditioning: KEY for Acura Image
Key
38836-PD2-003
Acura Acura
View Details
View Details
11
38844PD2003 - Body/Air Conditioning: RING, SNAP for Acura Image
Ring, Snap
38844-PD2-003
Acura Acura
View Details
View Details
12
38900PH7023 - Body/Air Conditioning: CLUTCH SET, MAGNETIC (DENSO) for Acura Image
Clutch Set, Magnetic
38900-PH7-023
Acura Acura
View Details
View Details
13
38920PH4669 - Body/Air Conditioning: BELT, COMPRESSOR (BANDO) for Acura Image
AC Belt
38920-PH4-669
Acura Acura
View Details
View Details
14
38926PH7003 - Body/Air Conditioning: STAY, IDLE PULLEY (DENSO) for Acura Image
Stay, Idle Pulley (Denso)
38926-PH7-003
Acura Acura
View Details
View Details
15
38930PH7000 - Body/Air Conditioning: BRACKET, COMPRESSOR for Acura Image
Bracket, Compressor
38930-PH7-000
Acura Acura
View Details
View Details
16
38942PH3003 - Body/Air Conditioning: PULLEY, IDLE for Acura Image
Pulley, Idle
38942-PH3-003
Acura Acura
View Details
View Details
17
38944PH3003 - Body/Air Conditioning: COLLAR, IDLE PULLEY (DENSO) for Acura Image
Collar, Idle Pulley (Denso)
38944-PH3-003
Acura Acura
View Details
View Details
18
38945PH3003 - Body/Air Conditioning: COVER, BEARING for Acura Image
Cover, Bearing
38945-PH3-003
Acura Acura
View Details
View Details
19
38946PH3003 - Body/Air Conditioning: SHAFT, IDLE (DENSO) for Acura Image
Shaft, Idle (Denso)
38946-PH3-003
Acura Acura
View Details
View Details
20
90043PH7000 - Body/Air Conditioning: BOLT, ADJUSTING (8X65) for Acura Image
Bolt, Adjusting (8X65)
90043-PH7-000
Acura Acura
View Details
View Details
21
38827PH7003 - Body/Air Conditioning: SCREW-WASHER (5X8) for Acura Image
Screw-Washer (5X8)
38827-PH7-003
Acura Acura
MSRP $4.80 CAD
$3.61 CAD
MSRP $4.80 CAD
$3.61 CAD
22
94001080000S - Body/Air Conditioning: NUT, HEX. (8MM) for Acura Image
Nut, Hex (8MM)
94001-08000-0S
Acura Acura
MSRP $1.49 CAD
$1.31 CAD
MSRP $1.49 CAD
$1.31 CAD
23
38947PL2000 - Body/Air Conditioning: NUT, IDLE PULLEY for Acura Image
Nut, Idle Pulley
38947-PL2-000
Acura Acura
View Details
View Details
25
9411108000 - Body/Air Conditioning: WASHER, SPRING (8MM) for Acura Image
Washer, Spring (8MM)
94111-08000
Acura Acura
MSRP $1.05 CAD
$0.95 CAD
MSRP $1.05 CAD
$0.95 CAD
27
957010801608 - Body/Air Conditioning: BOLT, FLANGE (8X16) for Acura Image
Bolt, Flange (8X16)
95701-08016-08
Acura Acura
MSRP $2.50 CAD
$1.86 CAD
MSRP $2.50 CAD
$1.86 CAD
28
957010806508 - Body/Air Conditioning: BOLT, FLANGE (8X65) for Acura Image
Bolt, Flange (8X65)
95701-08065-08
Acura Acura
MSRP $3.53 CAD
$2.64 CAD
MSRP $3.53 CAD
$2.64 CAD
29
90053PL2003 - Body/Air Conditioning: BOLT, FLANGE (10X40) for Acura Image
Bolt, Flange (10X40)
90053-PL2-003
Acura Acura
View Details
View Details
30
90054PL2003 - Body/Air Conditioning: BOLT, FLANGE (10X55) for Acura Image
Bolt, Flange (10X55)
90054-PL2-003
Acura Acura
View Details
View Details
34
38924PH7003 - Body/Air Conditioning: STATOR SET for Acura Image
Stator Set
38924-PH7-003
Acura Acura
View Details
View Details
35
38838PH7662 - Body/Air Conditioning: VALVE, SUCTION SERVICE for Acura Image
Valve, Suction Service
38838PH7662
Acura Acura
View Details
View Details
36
38850PC1003 - Body/Air Conditioning: O-RING for Acura Image
O-Ring
38850PC1003
Acura Acura
View Details
View Details

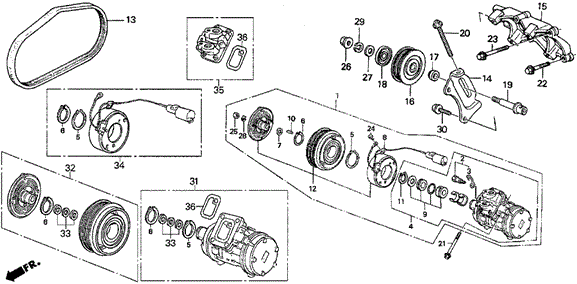

A/C Compressor for 1990 Acura Legend #1
1
1
2
2
3
3
4
4
5
5
5
5
5
5
6
6
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
28
28
30
30
34
34
35
35
36
36
36
36
No.
Part # / Description / Price
Price
NI
38020SM4A1AH - Body/Air Conditioning: RETROFIT KIT (A1) (R134) for Acura Image
Retrofit Kit (A1) (R134)
38020-SM4-A1AH
Acura Acura
View Details
View Details
1
38800PL2661 - Body/Air Conditioning: COMPRESSOR ASSY. (DENSO) for Acura Image
Compressor Assembly (Denso)
38800PL2661
Acura Acura
View Details
View Details
2
38801PT3A01 - Body/Air Conditioning: VALVE SUB-ASSY., SAFETY for Acura Image
Valve Sub-Assembly, Safety
38801-PT3-A01
Acura Acura
View Details
View Details
3
38802PT3A00 - Body/Air Conditioning: SEAL, RELIEF VALVE for Acura Image
Seal, Relief Valve
38802-PT3-A00
Acura Acura
View Details
View Details
4
38810PL2N01 - Body/Air Conditioning: COMPRESSOR for Acura Image
Compressor
38810-PL2-N01
Acura Acura
View Details
View Details
5
38811671003 - Body/Air Conditioning: CIRCLIP A (OUTER) for Acura Image
Circlip A (Outer)
38811-671-003
Acura Acura
View Details
View Details
6
38812671003 - Body/Air Conditioning: RING A, SNAP for Acura Image
Ring A, Snap
38812-671-003
Acura Acura
MSRP $13.37 CAD
$10.03 CAD
MSRP $13.37 CAD
$10.03 CAD
7
N9490132610 - Body/Air Conditioning: WASHER B, PLATE for Acura Image
Washer A Plate
N949013-2610
Acura Acura
View Details
View Details
7
38912671N01 - Body/Air Conditioning: WASHER A, PLATE for Acura Image
Washer Set, Plate
38912-671-N01
Acura Acura
View Details
View Details
7
38815671003 - Body/Air Conditioning: WASHER C, PLATE for Acura Image
Washer C, Plate
38815-671-003
Acura Acura
View Details
View Details
8
38816PH1003 - Body/Air Conditioning: CLIP, LEAD WIRE for Acura Image
Clip, Lead Wire
38816-PH1-003
Acura Acura
MSRP $6.50 CAD
$4.86 CAD
View Details
MSRP $6.50 CAD
$4.86 CAD
View Details
9
38834PD2003 - Body/Air Conditioning: SEAL ASSY., SHAFT for Acura Image
Seal Assembly, Shaft
38834-PD2-003
Acura Acura
View Details
View Details
10
38836PD2003 - Body/Air Conditioning: KEY for Acura Image
Key
38836-PD2-003
Acura Acura
View Details
View Details
11
38844PD2003 - Body/Air Conditioning: RING, SNAP for Acura Image
Ring, Snap
38844-PD2-003
Acura Acura
View Details
View Details
12
38900PL2N01 - Body/Air Conditioning: CLUTCH, MAGNETIC for Acura Image
Clutch Set, Magnetic
38900-PL2-N01
Acura Acura
View Details
View Details
13
38920PL2013 - Body/Air Conditioning: BELT, COMPRESSOR (DENSO) for Acura Image
Belt, Compressor (Denso)
38920-PL2-013
Acura Acura
View Details
View Details
14
38926PL2010 - Body/Air Conditioning: STAY, IDLE PULLEY for Acura Image
Stay, Idle Pulley
38926-PL2-010
Acura Acura
View Details
View Details
15
38930PL2010 - Body/Air Conditioning: BRACKET, COMPRESSOR for Acura Image
Bracket, Compressor
38930-PL2-010
Acura Acura
View Details
View Details
16
38942PH3003 - Body/Air Conditioning: PULLEY, IDLE for Acura Image
Pulley, Idle
38942-PH3-003
Acura Acura
View Details
View Details
17
38944PH3003 - Body/Air Conditioning: COLLAR, IDLE PULLEY (DENSO) for Acura Image
Collar, Idle Pulley (Denso)
38944-PH3-003
Acura Acura
View Details
View Details
18
38945PH3003 - Body/Air Conditioning: COVER, BEARING for Acura Image
Cover, Bearing
38945-PH3-003
Acura Acura
View Details
View Details
19
38946PH3003 - Body/Air Conditioning: SHAFT, IDLE (DENSO) for Acura Image
Shaft, Idle (Denso)
38946-PH3-003
Acura Acura
View Details
View Details
20
90043PH7000 - Body/Air Conditioning: BOLT, ADJUSTING (8X65) for Acura Image
Bolt, Adjusting (8X65)
90043-PH7-000
Acura Acura
View Details
View Details
21
957010806508 - Body/Air Conditioning: BOLT, FLANGE (8X65) for Acura Image
Bolt, Flange (8X65)
95701-08065-08
Acura Acura
MSRP $3.53 CAD
$2.64 CAD
MSRP $3.53 CAD
$2.64 CAD
22
90053PL2003 - Body/Air Conditioning: BOLT, FLANGE (10X40) for Acura Image
Bolt, Flange (10X40)
90053-PL2-003
Acura Acura
View Details
View Details
23
90054PL2003 - Body/Air Conditioning: BOLT, FLANGE (10X55) for Acura Image
Bolt, Flange (10X55)
90054-PL2-003
Acura Acura
View Details
View Details
24
38827PH7003 - Body/Air Conditioning: SCREW-WASHER (5X8) for Acura Image
Screw-Washer (5X8)
38827-PH7-003
Acura Acura
MSRP $4.80 CAD
$3.61 CAD
MSRP $4.80 CAD
$3.61 CAD
25
94001080000S - Body/Air Conditioning: NUT, HEX. (8MM) for Acura Image
Nut, Hex (8MM)
94001-08000-0S
Acura Acura
MSRP $1.49 CAD
$1.31 CAD
MSRP $1.49 CAD
$1.31 CAD
26
94002100800S - Body/Air Conditioning: NUT, HEX. (10MM) for Acura Image
Nut, Hex (10MM)
94002-10080-0S
Acura Acura
MSRP $1.62 CAD
$1.21 CAD
MSRP $1.62 CAD
$1.21 CAD
28
9411108000 - Body/Air Conditioning: WASHER, SPRING (8MM) for Acura Image
Washer, Spring (8MM)
94111-08000
Acura Acura
MSRP $1.05 CAD
$0.95 CAD
MSRP $1.05 CAD
$0.95 CAD
30
957010801608 - Body/Air Conditioning: BOLT, FLANGE (8X16) for Acura Image
Bolt, Flange (8X16)
95701-08016-08
Acura Acura
MSRP $2.50 CAD
$1.86 CAD
MSRP $2.50 CAD
$1.86 CAD
34
38924PL2N01 - Body/Air Conditioning: COIL SET, FIELD for Acura Image
Coil Set, Field
38924-PL2-N01
Acura Acura
View Details
View Details
35
38838PL2661 - Body/Air Conditioning: VALVE, SUCTION SERVICE for Acura Image
Valve, Suction Service
38838PL2661
Acura Acura
View Details
View Details
36
38850PC1003 - Body/Air Conditioning: O-RING for Acura Image
O-Ring
38850PC1003
Acura Acura
View Details
View Details
