Home 1990 Acura Legend L 2.7L V6 - Gas Timing Belt Cover

Timing Belt Cover for 1990 Acura Legend

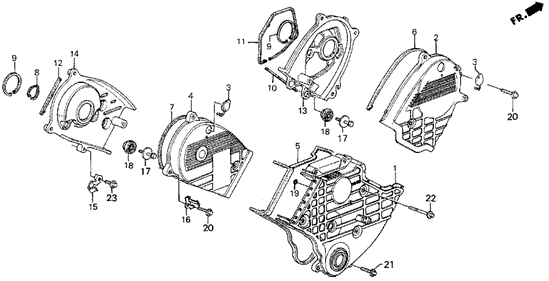

Timing Belt Cover for 1990 Acura Legend #0

Timing Belt Cover for 1990 Acura Legend #1

Timing Belt Cover for 1990 Acura Legend #0

1

1

2

2

3

3

3

3

4

4

5

5

6

6

7

7

8

8

9

9

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

17

17

18

18

18

18

19

19

20

20

20

20

22

22

23

23

No.

Part # / Description / Price

Price

1

11810PH7010 - Engine: COVER, TIMING BELT (LOWER) for Acura Image

Cover, Timing Belt (Lower)

Acura

Acura

2

11820PH7010 - Engine: COVER, FR. TIMING BELT (UPPER) for Acura Image

Cover, Front Timing Belt (Upper)

Acura

Acura

3

11825PH7000 - Engine: GROMMET, TIMING BELT COVER HOLE for Acura Image

Grommet, Timing Belt Cover Hole

Acura

Acura

4

11830PH7000 - Engine: COVER, RR. TIMING BELT (UPPER) for Acura Image

Cover, Rear Timing Belt (Upper)

Acura

Acura

5

11841PH7000 - Engine: GASKET A, TIMING BELT COVER for Acura Image

Gasket A, Timing Belt Cover

Acura

Acura

6

11843PH7000 - Engine: GASKET, FR. TIMING BELT COVER (UPPER) for Acura Image

Gasket, Front Timing Belt Cover (Upper)

Acura

Acura

7

11844PH7000 - Engine: GASKET, RR. TIMING BELT COVER (UPPER) for Acura Image

Gasket, Rear Timing Belt Cover (Upper)

Acura

Acura

8

11845PH7000 - Engine: GASKET, RR. TIMING BELT BACK PLATE for Acura Image

Gasket, Rear Timing Belt Back Plate

Acura

Acura

9

11846PH7000 - Engine: GASKET, TIMING BELT PLATE for Acura Image

Gasket, Timing Belt Plate

Acura

Acura

10

11847PH7000 - Engine: GASKET, FR. TIMING BELT PLATE for Acura Image

Gasket, Front Timing Belt Plate

Acura

Acura

11

11848PH7010 - Engine: GASKET, FR. TIMING BELT BACK PLATE for Acura Image

Gasket, Front Timing Belt Back Plate

Acura

Acura

12

11849PH7000 - Engine: GASKET, RR. TIMING BELT PLATE for Acura Image

Gasket, Rear Timing Belt Plate

Acura

Acura

13

11860PH7020 - Engine: PLATE, FR. TIMING BELT COVER for Acura Image

Plate, Front Timing Belt Cover

Acura

Acura

14

11870PH7000 - Engine: PLATE, RR. TIMING BELT COVER for Acura Image

Plate, Rear Timing Belt Cover

Acura

Acura

15

32119PH7000 - Engine: CLAMP A, ENGINE WIRE HARNESS for Acura Image

Clamp A, Engine Wire Harness

Acura

Acura

16

32125PH7000 - Engine: CLAMP B, ENGINE WIRE HARNESS for Acura Image

Clamp B, Engine Wire Harness

Acura

Acura

17

90047PH7000 - Engine: BOLT-WASHER (6X22) for Acura Image

Bolt-Washer (6X22)

Acura

Acura

18

90423PY3000 - Engine: RUBBER, TIMING BELT PLATE MOUNTING for Acura Image

Rubber, Timing Belt Plate Mounting

Acura

Acura

MSRP $11.22 CAD

$8.39 CAD

MSRP $11.22 CAD

$8.39 CAD

19

91312PH7000 - Engine: O-RING (8.5X1.5) for Acura Image

O-Ring (8.5X1.5)

Acura

Acura

20

957010602208 - Engine: BOLT, FLANGE (6X22) for Acura Image

Bolt, Flange (6X22)

Acura

Acura

MSRP $1.80 CAD

$1.36 CAD

MSRP $1.80 CAD

$1.36 CAD

22

957010603508 - Engine: BOLT, FLANGE (6X35) for Acura Image

Bolt, Flange (6X35)

Acura

Acura

MSRP $2.48 CAD

$1.85 CAD

MSRP $2.48 CAD

$1.85 CAD

23

957010601208 - Engine: BOLT, FLANGE (6X12) for Acura Image

Bolt, Flange (6X12)

Acura

Acura

MSRP $1.79 CAD

$1.35 CAD

MSRP $1.79 CAD

$1.35 CAD

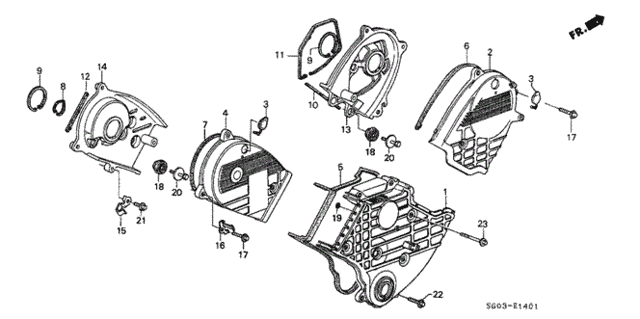

Timing Belt Cover for 1990 Acura Legend #1

1

1

2

2

3

3

3

3

4

4

5

5

6

6

7

7

8

8

9

9

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

17

17

18

18

18

18

19

19

20

20

20

20

21

21

23

23

No.

Part # / Description / Price

Price

1

11810PH7010 - Engine: COVER, TIMING BELT (LOWER) for Acura Image

Cover, Timing Belt (Lower)

Acura

Acura

2

11820PH7010 - Engine: COVER, FR. TIMING BELT (UPPER) for Acura Image

Cover, Front Timing Belt (Upper)

Acura

Acura

3

11825PH7000 - Engine: GROMMET, TIMING BELT COVER HOLE for Acura Image

Grommet, Timing Belt Cover Hole

Acura

Acura

4

11830PH7000 - Engine: COVER, RR. TIMING BELT (UPPER) for Acura Image

Cover, Rear Timing Belt (Upper)

Acura

Acura

5

11841PH7000 - Engine: GASKET A, TIMING BELT COVER for Acura Image

Gasket A, Timing Belt Cover

Acura

Acura

6

11843PH7000 - Engine: GASKET, FR. TIMING BELT COVER (UPPER) for Acura Image

Gasket, Front Timing Belt Cover (Upper)

Acura

Acura

7

11844PH7000 - Engine: GASKET, RR. TIMING BELT COVER (UPPER) for Acura Image

Gasket, Rear Timing Belt Cover (Upper)

Acura

Acura

8

11845PH7000 - Engine: GASKET, RR. TIMING BELT BACK PLATE for Acura Image

Gasket, Rear Timing Belt Back Plate

Acura

Acura

9

11846PH7000 - Engine: GASKET, TIMING BELT PLATE for Acura Image

Gasket, Timing Belt Plate

Acura

Acura

10

11847PH7000 - Engine: GASKET, FR. TIMING BELT PLATE for Acura Image

Gasket, Front Timing Belt Plate

Acura

Acura

11

11848PH7010 - Engine: GASKET, FR. TIMING BELT BACK PLATE for Acura Image

Gasket, Front Timing Belt Back Plate

Acura

Acura

12

11849PH7000 - Engine: GASKET, RR. TIMING BELT PLATE for Acura Image

Gasket, Rear Timing Belt Plate

Acura

Acura

13

11860PH7020 - Engine: PLATE, FR. TIMING BELT COVER for Acura Image

Plate, Front Timing Belt Cover

Acura

Acura

14

11870PH7000 - Engine: PLATE, RR. TIMING BELT COVER for Acura Image

Plate, Rear Timing Belt Cover

Acura

Acura

15

32119PH7000 - Engine: CLAMP A, ENGINE WIRE HARNESS for Acura Image

Clamp A, Engine Wire Harness

Acura

Acura

16

32125PH7000 - Engine: CLAMP B, ENGINE WIRE HARNESS for Acura Image

Clamp B, Engine Wire Harness

Acura

Acura

17

90047PH7000 - Engine: BOLT-WASHER (6X22) for Acura Image

Bolt-Washer (6X22)

Acura

Acura

18

90423PY3000 - Engine: RUBBER, TIMING BELT PLATE MOUNTING for Acura Image

Rubber, Timing Belt Plate Mounting

Acura

Acura

MSRP $11.22 CAD

$8.39 CAD

MSRP $11.22 CAD

$8.39 CAD

19

91312PH7000 - Engine: O-RING (8.5X1.5) for Acura Image

O-Ring (8.5X1.5)

Acura

Acura

20

957010602208 - Engine: BOLT, FLANGE (6X22) for Acura Image

Bolt, Flange (6X22)

Acura

Acura

MSRP $1.80 CAD

$1.36 CAD

MSRP $1.80 CAD

$1.36 CAD

21

957010601208 - Engine: BOLT, FLANGE (6X12) for Acura Image

Bolt, Flange (6X12)

Acura

Acura

MSRP $1.79 CAD

$1.35 CAD

MSRP $1.79 CAD

$1.35 CAD

23

957010603508 - Engine: BOLT, FLANGE (6X35) for Acura Image

Bolt, Flange (6X35)

Acura

Acura

MSRP $2.48 CAD

$1.85 CAD

MSRP $2.48 CAD

$1.85 CAD
