Home 1998 Acura TL Base 3.2L V6 - Gas P.S. Gear Box Components (V6) (2)

P.S. Gear Box Components (V6) (2) for 1998 Acura TL

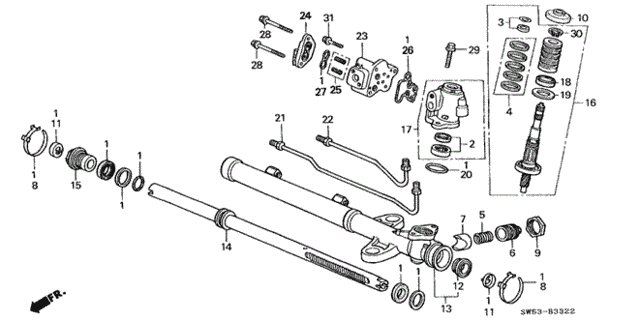

P.S. Gear Box Components (V6) (2) for 1998 Acura TL #0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

8

8

9

9

10

10

11

11

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

27

27

28

28

28

28

29

29

30

30

31

31

No.

Part # / Description / Price

Price

1

6531SZ5003 - Chassis: SEAL KIT A, POWER STEERING (ROTARY VALVE) for Acura Image

Seal Kit A, Power Steering (Rotary Valve)

Acura

Acura

2

6532S50003 - Chassis: OIL SEAL SET, ROTARY VALVE for Acura Image

Oil Seal Set, Rotary Valve

Acura

Acura

MSRP $38.65 CAD

$28.96 CAD

MSRP $38.65 CAD

$28.96 CAD

3

6534S84A01 - Chassis: RING SET, POWER STEERING SEAL (ROTARY VALVE) for Acura Image

Ring Set, Power Steering Seal (Rotary Valve)

Acura

Acura

MSRP $18.05 CAD

$13.56 CAD

MSRP $18.05 CAD

$13.56 CAD

4

6535SW5003 - Chassis: RING SET, POWER STEERING SEAL for Acura Image

Ring Set, Power Steering Seal

Acura

Acura

5

53413ST7J61 - Chassis: SPRING, RACK GUIDE PRESSURE for Acura Image

Spring, Rack Guide Pressure

Acura

Acura

MSRP $8.98 CAD

$6.71 CAD

MSRP $8.98 CAD

$6.71 CAD

6

53414S30003 - Chassis: SCREW, RACK GUIDE for Acura Image

Screw, Rack Guide

Acura

Acura

7

53416SM4J61 - Chassis: GUIDE, STEERING RACK for Acura Image

Guide, Steering Rack

Acura

Acura

8

53449SF1J60 - Chassis: BAND, DRIVEN PINION for Acura Image

Band, Driven Pinion

Acura

Acura

MSRP $11.66 CAD

$8.75 CAD

MSRP $11.66 CAD

$8.75 CAD

9

53458SM4J60 - Chassis: NUT, RACK SCREW LOCK for Acura Image

Nut, Rack Screw Lock

Acura

Acura

10

53501SW5000 - Chassis: COVER, PINION DUST for Acura Image

Cover, Pinion Dust

Acura

Acura

11

53536SS0000 - Chassis: WASHER, TIE ROD LOCK for Acura Image

Washer, Tie Rod Lock

Acura

Acura

12

53537SW5003 - Chassis: RUBBER, STOPPER for Acura Image

Rubber, Stopper

Acura

Acura

13

53608SZ5A01 - Chassis: HOUSING SUB-ASSY., STEERING RACK for Acura Image

Housing Sub-Assembly, Steering Rack

Acura

Acura

14

53626SZ5A02 - Chassis: RACK, STEERING for Acura Image

Rack, Steering

Acura

Acura

15

53630SZ5003 - Chassis: END, CYLINDER for Acura Image

End, Cylinder

Acura

Acura

16

53641SZ5A01 - Chassis: VALVE SUB-ASSY., STEERING for Acura Image

Valve Sub-Assembly, Steering

Acura

Acura

17

53645SZ5A01 - Chassis: HOUSING, VALVE for Acura Image

Housing, Valve

Acura

Acura

MSRP $317.40 CAD

$219.01 CAD

MSRP $317.40 CAD

$219.01 CAD

18

53660SW5003 - Chassis: OIL SEAL, CYLINDER END (27X41X5.5) for Acura Image

Oil Seal, Cylinder End (27X41X5.5)

Acura

Acura

19

53661SW5003 - Chassis: WASHER, WAVE for Acura Image

Washer, Wave

Acura

Acura

20

53666SW5003 - Chassis: O-RING (44.5X2) for Acura Image

O-Ring (44.5X2)

Acura

Acura

21

53670SZ5A01 - Chassis: PIPE A, CYLINDER for Acura Image

Pipe A, Cylinder

Acura

Acura

22

53671SZ5A01 - Chassis: PIPE B, CYLINDER for Acura Image

Pipe B, Cylinder

Acura

Acura

23

53691SW5A01 - Chassis: BODY, VALVE for Acura Image

Body, Valve

Acura

Acura

24

53693SZ5A01 - Chassis: PORT, SENSOR for Acura Image

Port, Sensor

Acura

Acura

MSRP $127.14 CAD

$89.99 CAD

MSRP $127.14 CAD

$89.99 CAD

25

53697SW5003 - Chassis: SPRING SET, ASSIST CONTROL VALVE for Acura Image

Spring Set, Assist Control Valve

Acura

Acura

26

53698SW5003 - Chassis: SEAL, VALVE HOUSING for Acura Image

Seal, Valve Housing

Acura

Acura

27

53699SW5003 - Chassis: SEAL, SENSOR PORT (NOK) for Acura Image

Seal, Sensor Port (Nok)

Acura

Acura

28

90101SW5000 - Chassis: BOLT, FLANGE (6X52) for Acura Image

Bolt, Flange (6X52)

Acura

Acura

29

90105S50003 - Chassis: BOLT, FLANGE (8X28) for Acura Image

Bolt, Flange (8X28)

Acura

Acura

MSRP $9.28 CAD

$6.98 CAD

MSRP $9.28 CAD

$6.98 CAD

30

90601S50003 - Chassis: CIRCLIP (OUTER) (20MM) for Acura Image

Circlip (Outer) (20MM)

Acura

Acura

MSRP $6.66 CAD

$4.96 CAD

MSRP $6.66 CAD

$4.96 CAD

31

958010602508 - Chassis: BOLT, FLANGE (6X25) for Acura Image

Bolt, Flange (6X25)

Acura

Acura

MSRP $1.62 CAD

$1.21 CAD

MSRP $1.62 CAD

$1.21 CAD
